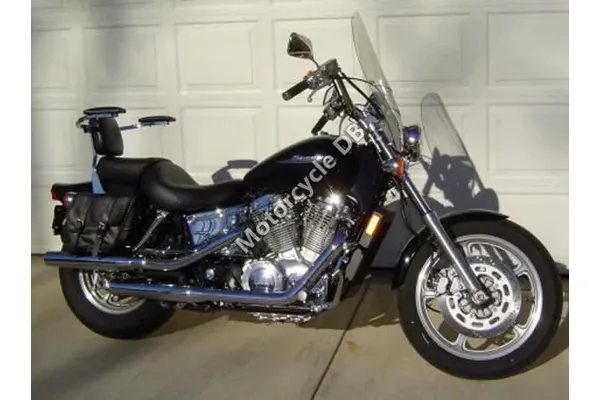

Honda Shadow Sabre - 2004 Specifications and Reviews
|
Category | Custom / cruiser |
Year | 2004 |
Model | Honda Shadow Sabre |
|
Engine and Transmission Specifications |
Transmission typefinal drive | Shaft drive (cardan) |
Gearbox | 5-speed |
Cooling system | Liquid |
Fuel control | SOHC |
Valves per cylinder | 3 |
Fuel system | Carburettor |
Bore x stroke | 87.5 x 91.4 mm (3.4 x 3.6 inches) |
Compression | 8.0:1 |
Stroke | 4 |
Engine type | V2 |
Capacity: | 1099.00 ccm (67.06 cubic inches) |
Physical measures and capacities |
Wheelbase | 1,641 mm (64.6 inches) |
Seat height | 691 mm (27.2 inches) If adjustable, lowest setting. |
|
Honda Shadow Sabre dimensions and frame |
Rear brakes diameter | 276 mm (10.9 inches) |
Rear brakes | Single disc |
Front brakes diameter | 316 mm (12.4 inches) |
Front brakes | Single disc |
Rear tyre dimensions | 170/80-15 |
Front tyre dimensions | 120/90-18 |
Rear suspension travel | 99 mm (3.9 inches) |
Rear suspension | Dual shocks with five-position spring-preload adjustability. |
Front suspension travel | 119 mm (4.7 inches) |
Front suspension | 41mm fork. |
Trail | 161 mm (6.3 inches) |
Rake (fork angle) | 32.6° |
Speed and acceleration |
Color options | Candy Red, Black Flame, Pearl Purple Flame |
Reserve fuel capacity | 2.27 litres (0.60 gallons) |
Fuel capacity | 15.89 litres (4.20 gallons) |
