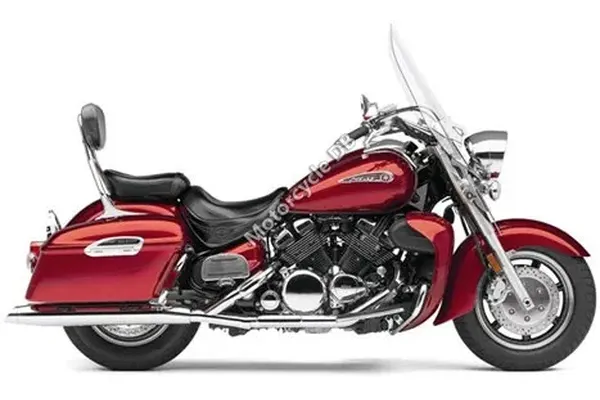

Yamaha Royal Star Venture S - 2013 Specifications and Reviews
General information | |
| Category | Touring |
| Year | 2013 |
| Model | Yamaha Royal Star Venture S |
| | |
Engine and Transmission Specifications | |
| Greenhouse gases | 139.9 CO |
| Fuel consumption | 6.03 litres/100 km (16.6 km/l or 39.01 mpg) |
| Transmission type,final drive | Shaft drive (cardan) |
| Gearbox | 5-speed |
| Cooling system | Liquid |
| Ignition | TCI: Transistor Controlled Ignition |
| Fuel control | DOHC |
| Fuel system | Carburettor. Mikuni |
| Valves per cylinder | 4 |
| Bore x stroke | 79.0 x 66.0 mm (3.1 x 2.6 inches) |
| Compression | 10.0:1 |
| Power | 97.00 |
| Engine type | V4, four-stroke |
| Capacity: | 1294.66 ccm (79.00 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | 7-spoke cast |
| Rear brakes diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Hydraulic. |
| Front brakes diameter | 298 mm (11.7 inches) |
| Front brakes | Double disc. Hydraulic. |
| Rear tyre dimensions | 150/90-B15 |
| Front tyre dimensions | 150/80-H16 |
| Rear suspension travel | 104 mm (4.1 inches) |
| Rear suspension | Single shock |
| Front suspension travel | 140 mm (5.5 inches) |
| Front suspension | Telescopic fork |
| Frame type | single-backbone frame with solid engine mounting |
Physical measures and capacities | |
| Fuel capacity | 23.09 litres (6.10 gallons) |
| Wheelbase | 1,704 mm (67.1 inches) |
| Overall width | 899 mm (35.4 inches) |
| Overall length | 2,654 mm (104.5 inches) |
| Overall height | 1,565 mm (61.6 inches) |
| Seat height | 749 mm (29.5 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 394.2 kg (869.0 pounds) |
Other specs | |
| Power/weight ratio | 0.1143 HP/kg |
| Dry weight | 210.5 kg (464.1 pounds) |
| Seat | 2-person seat |
| Rear tyre | 20/10-9 |
| Front tyre | 21/7-10 |
| Rear Suspension | Mono shock |
| Front Suspension | Independent A-arm |
| Bore x Stroke | 56.0 x 53.0 mm (2.2 x 2.1 inches) |
| Capacity: | 392.00 ccm (23.92 cubic inches) |
| Comments | Windscreen |
| Color options | Charcoal Silver/Raven |
| Factory warranty | 5 Year (Limited Factory Warranty) |
| Starter | Electric |
