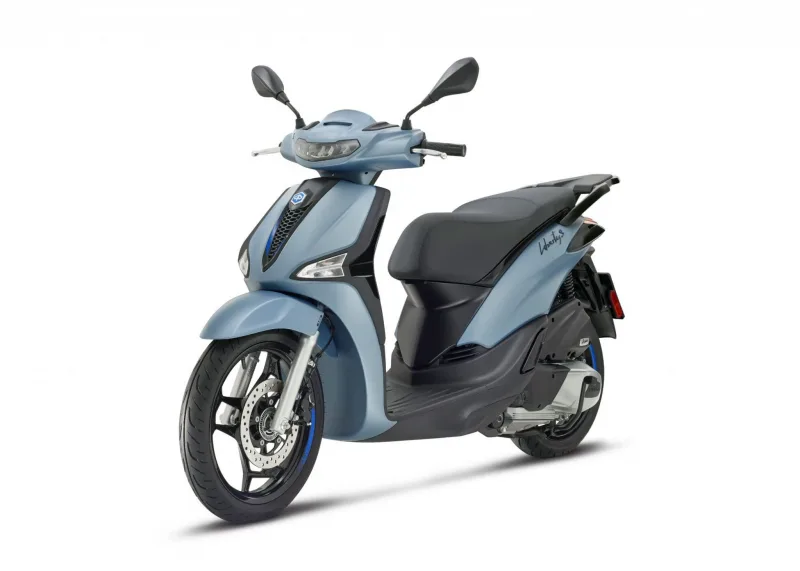

Piaggio Liberty S 125 - 2024 Specifications and Reviews
General information | |
| Type | Scooter |
| Year of manufacture | 2024 |
| Model name | Piaggio Liberty S 125 |
Engine and Transmission Specifications | |
| Emission details | Euro 5 |
| Greenhouse gases | 58.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel consumption | 2.50 litres/100 km (40.0 km/l or 94.09 mpg) |
| Driveline | CVT with torque server |
| Clutch | Automatic centrifugal, dry |
| Transmission type | Belt (final drive) |
| Gearbox | Automatic |
| Cooling system | Air |
| Lubrication system | Wet sump |
| Fuel control | Single Overhead Cams (SOHC) |
| Fuel system | Injection |
| Valves per cylinder | 3 |
| Bore x stroke | 52.0 x 58.6 mm (2.0 x 2.3 inches) |
| Torque | 10.8 Nm (1.1 kgf-m or 7.9 ft.lbs) @ 6500 RPM |
| Output | 10.9 HP (7.9 kW)) @ 8250 RPM |
| Type of engine | Single cylinder, four-stroke |
| Capacity: | 124.0 ccm (7.57 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 240 mm (9.4 inches) |
| Front brakes | Single disc. Front-wheel-only ABS |
| Rear tire | 100/80-14 |
| Front tire | 90/80-16 |
| Rear wheel travel | 74 mm (2.9 inches) |
| Rear suspension | Single hydraulic shock absorber with adjustable preload with 4 settings |
| Front wheel travel | 76 mm (3.0 inches) |
| Front suspension | Telescopic fork |
| Frame type | High strength reinforced tubular steel |
Physical measures and capacities | |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Fuel capacity | 6.00 litres (1.59 US gallons) |
| Wheelbase | 1340 mm (52.8 inches) |
| Overall width | 690 mm (27.2 inches) |
| Overall length | 1945 mm (76.6 inches) |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| | |
Other specs | |
| Update specs | |
| Carrying capacity | Underseat storage with USB socket. |
| Instruments | LCD instruments |
| Starter | Electric |
| Color options | White, grey, brown, black |
