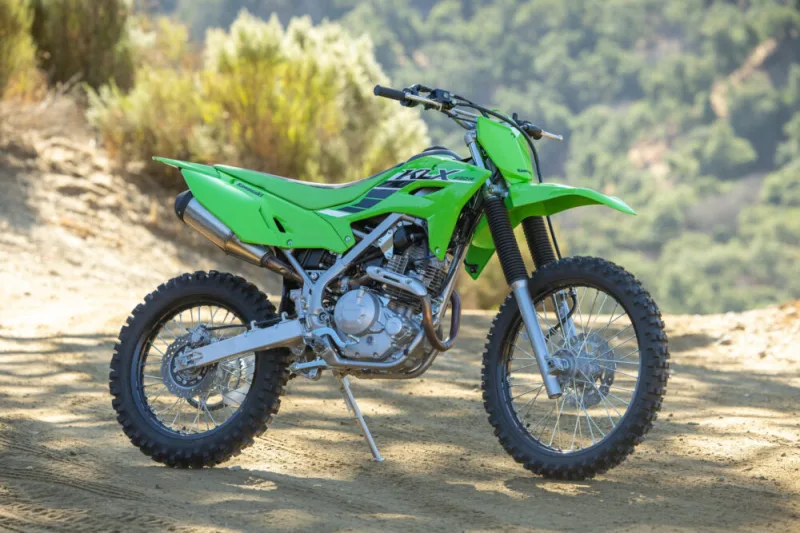

Kawasaki KLX 230R S - 2024 Specifications and Reviews

2024
Not Rated stars Average rating: Not Rated from 0 votes
.

General information

Price as newDo you know this bike?Click here to rate it. We miss 2 votes to show the rating.
CategoryEnduro / offroad
Model year2024
Model nameKawasaki KLX 230R S



Engine and Transmission Specifications

DrivelineSealed chain
ClutchWet multi-disc, manual
Transmission typeChain (final drive)
Gearbox6-speed
Cooling systemAir
IgnitionTCBI Electronic Advance
Fuel controlSingle Overhead Cams (SOHC)
Fuel systemInjection. DFI® with 32mm Keihin throttle body
Valves per cylinder4
Bore x stroke67.0 x 66.0 mm (2.6 x 2.6 inches)
Compression9.4:1
Engine typeSingle cylinder, four-stroke
Capacity:233.0 ccm (14.22 cubic inches)



Brakes, suspension, Frame and wheels

WheelsWire spoked
Rear brakesSingle disc. Petal disc. Single-piston caliper.
Diameter240 mm (9.4 inches)
Front brakesSingle disc. Petal disc. Dual-piston caliper.
Rear tire100/100-18
Front tire80/100-21
Rear wheel travel224 mm (8.8 inches)
Rear suspensionUni-Trak® linkage system and single shock with adjustable spring preload
Front wheel travel221 mm (8.7 inches)
Front suspension37mm telescopic fork
Trail109 mm (4.3 inches)
Rake (fork angle)25.7°
Frame typeHigh-tensile steel, box section perimeter

Physical measures and capacities

Fuel capacity6.43 litres (1.70 US gallons)
Wheelbase1349 mm (53.1 inches)
Ground clearance274 mm (10.8 inches)
Overall width841 mm (33.1 inches)
Overall length2035 mm (80.1 inches)
Overall height1176 mm (46.3 inches)
Seat height899 mm (35.4 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc115.0 kg (253.6 pounds)

Other specs

Update specs
Factory warranty6 months
StarterElectric
Color optionsLime Green
