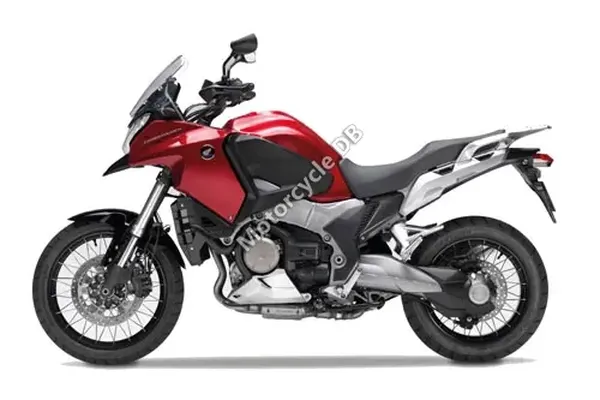

Honda VFR1200X Crosstourer - 2014 Specifications and Reviews
General information | |
| Category | Sport touring |
| Year | 2014 |
| Model | Honda VFR1200X Crosstourer |
Engine and Transmission Specifications | |
| Greenhouse gases | 119.9 CO |
| Fuel consumption | 5.17 litres/100 km (19.3 km/l or 45.50 mpg) |
| Clutch | Wet multiplate (* Wet multiplate, hydraulic 2-clutch) |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Fuel control | SOHC |
| Fuel system | Injection. PGM-FI |
| Valves per cylinder | 4 |
| Bore x stroke | 81.0 x 60.0 mm (3.2 x 2.4 inches) |
| Compression | 12.0:1 |
| Torque | 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 6500 |
| Power | 127.40 |
| Engine details | 76 degree cyclinder angle |
| Engine type | V4, four-stroke |
| Capacity: | 1237.00 ccm (75.48 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Rear brakes diameter | 276 mm (10.9 inches) |
| Rear brakes | Single disc. Combined ABS |
| Front brakes diameter | 310 mm (12.2 inches) |
| Front brakes | Double disc. Combined ABS |
| Rear tyre dimensions | 150/70-R17 |
| Front tyre dimensions | 110/80-R19 |
| Rear suspension | Pro-Link with gas-charged damper, preload and stepless rebound damping adjustment |
| Front suspension | 43mm inverted telescopic forks with hydraulic damping, preload and rebound damping adjustment |
| Trail | 107 mm (4.2 inches) |
| Rake (fork angle) | 28.0° |
| Frame type | Diamond; aluminium twin-spar |
Physical measures and capacities | |
| Fuel capacity | 21.50 litres (5.68 gallons) |
| Wheelbase | 1,595 mm (62.8 inches) |
| Ground clearance | 180 mm (7.1 inches) |
| Overall width | 915 mm (36.0 inches) |
| Overall length | 2,285 mm (90.0 inches) |
| Overall height | 1,335 mm (52.6 inches) |
| Seat height | 850 mm (33.5 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 275.0 kg (606.3 pounds) |
Other specs | |
| Comments | Model ID: VFR1200F with Dual Clutch Automatic Transmission |
| Factory warranty | One year. Unlimited milage. Transferable. |
| Wheelbase | 1,544 mm (60.8 inches) |
| Rear tyre | 190/55-ZR17 |
| Front tyre | 120/70-ZR17 |
| Rear wheel travel | 130 mm (5.1 inches) |
| Rear Suspension | Pro Arm single-side swingarm with Pro-Link¿ single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability |
| Front wheel travel | 109 mm (4.3 inches) |
| Front Suspension | 43mm cartridge fork with spring-preload adjustability |
| Emission details | Meets current California Air Resources Board (CARB) and EPA standards. |
| Valves per cylinder | 4 |
| Bore x Stroke | 81.0 x 60.0 mm (3.2 x 2.4 inches) |
| Compression | 12.0:1 |
| Model | Honda VFR1200F DCT |
| Color options | Matt Titanium Blade Metallic, Camo |
| Starter | Electric |
