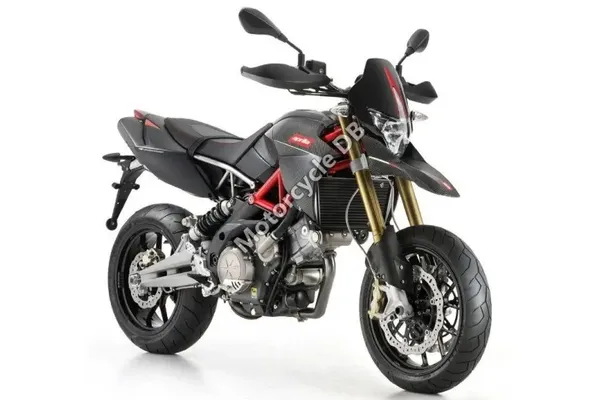

Aprilia Dorsoduro 750 Factory - 2013 Specifications and Reviews

Not Rated stars Average rating: Not Rated from 0 votes
.

General information

CategorySuper motard
Year2013
ModelAprilia Dorsoduro 750 Factory

Engine and Transmission Specifications

Exhaust systemTwo in one system in 100% stainless steel with three-way catalytic converter and Lambda probe.
DrivelinePrimary drive: Spur gears. Transmission ratio 38/71 (1.87). Final drive: Chain. Transmission ratio 16/46.
ClutchHydraulically operated multi-plate wet clutch.
Transmission type,final driveChain
Gearbox6-speed
Cooling systemLiquid
Lubrication systemWet sump.
IgnitionDigital electronic, integrated in the fuel injection system.
Fuel controlDOHC
Fuel systemInjection. Integrated engine management system. Electronic fuel injection with ride-by-wire electronic throttle control.
Valves per cylinder4
Bore x stroke92.0 x 56.4 mm (3.6 x 2.2 inches)
Compression11.0:1
Torque82.00 Nm (8.4 kgf-m or 60.5 ft.lbs) @ 4500
Power90.25
Engine detailsAprilia V90 longitudinal 90° V twin. Ride-by-Wire System.
Engine typeV2, four-stroke
Capacity:749.90 ccm (45.76 cubic inches)



Brakes, suspension, Frame and wheels

WheelsAluminium alloy. Front: 3.50 x 17´. Rear: 6.00 x 17´.
Rear brakes diameter240 mm (9.4 inches)
Rear brakesSingle disc. Bremo. Wave stainless steel floating disc.
Front brakes diameter320 mm (12.6 inches)
Front brakesDouble disc. Bremo. Wave stainless steel floating disc.
Rear tyre dimensions180/55-17.
Front tyre dimensions120/70-17.
Rear suspension travel160 mm (6.3 inches)
Rear suspensionAluminium alloy swingarm Gas-operated shock absorber with piggy back, with adjustable spring preload and compression and rebound damping. Wheel travel 160 mm
Front suspension travel160 mm (6.3 inches)
Front suspension43 mm upside-down fork. 160 mm wheel travel.
Trail108 mm (4.3 inches)
Rake (fork angle)26.0°
Frame typeModular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame.



Physical measures and capacities

Fuel capacity12.00 litres (3.17 gallons)
Wheelbase1,505 mm (59.3 inches)
Overall width905 mm (35.6 inches)
Overall length2,216 mm (87.2 inches)
Overall height1,185 mm (46.7 inches)
Seat height870 mm (34.3 inches) If adjustable, lowest setting.
Power/weight ratio0.4878 HP/kg
Dry weight185.0 kg (407.9 pounds)

Other specs

Color optionsNero Vulcano (black)
StarterElectric
