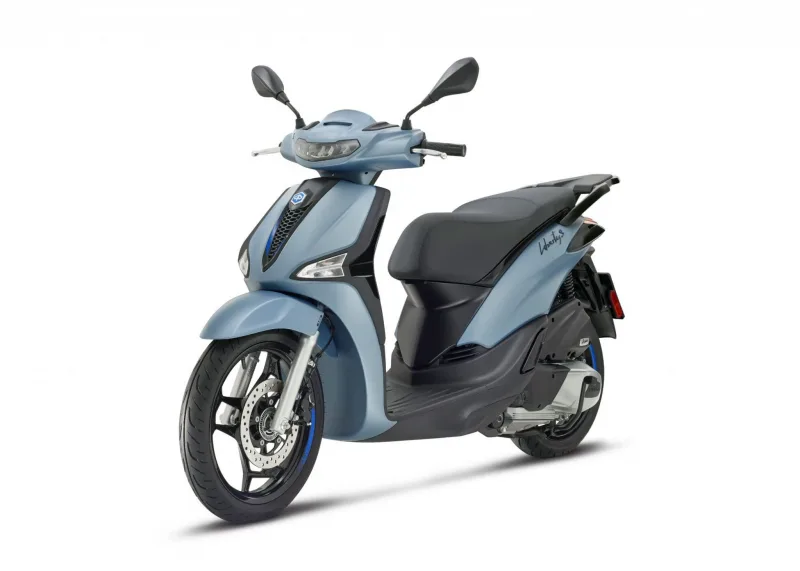

Piaggio Liberty S 125 - 2024 Specifications and Reviews

Not Rated stars Average rating: Not Rated from 0 votes
.

General information

TypeScooter
Year of manufacture2024
Model namePiaggio Liberty S 125



Engine and Transmission Specifications

Emission detailsEuro 5
Greenhouse gases58.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel consumption2.50 litres/100 km (40.0 km/l or 94.09 mpg)
DrivelineCVT with torque server
ClutchAutomatic centrifugal, dry
Transmission typeBelt (final drive)
GearboxAutomatic
Cooling systemAir
Lubrication systemWet sump
Fuel controlSingle Overhead Cams (SOHC)
Fuel systemInjection
Valves per cylinder3
Bore x stroke52.0 x 58.6 mm (2.0 x 2.3 inches)
Torque10.8 Nm (1.1 kgf-m or 7.9 ft.lbs) @ 6500 RPM
Output10.9 HP (7.9 kW)) @ 8250 RPM
Type of engineSingle cylinder, four-stroke
Capacity:124.0 ccm (7.57 cubic inches)

Brakes, suspension, Frame and wheels

Rear brakesExpanding brake (drum brake)
Diameter240 mm (9.4 inches)
Front brakesSingle disc. Front-wheel-only ABS
Rear tire100/80-14
Front tire90/80-16
Rear wheel travel74 mm (2.9 inches)
Rear suspensionSingle hydraulic shock absorber with adjustable preload with 4 settings
Front wheel travel76 mm (3.0 inches)
Front suspensionTelescopic fork
Frame typeHigh strength reinforced tubular steel

Physical measures and capacities

Reserve fuel capacity1.50 litres (0.40 US gallons)
Fuel capacity6.00 litres (1.59 US gallons)
Wheelbase1340 mm (52.8 inches)
Overall width690 mm (27.2 inches)
Overall length1945 mm (76.6 inches)
Seat height790 mm (31.1 inches) If adjustable, lowest setting.

Other specs

Update specs
Carrying capacityUnderseat storage with USB socket.
InstrumentsLCD instruments
StarterElectric
Color optionsWhite, grey, brown, black
