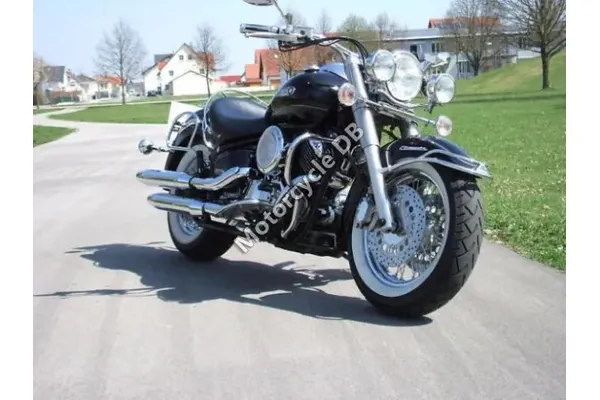

Yamaha XVS 1100 A Drag Star Classic - 2002 Specifications and Reviews
General information | |
| Category | Custom / cruiser |
| Year | 2002 |
| Model | Yamaha XVS 1100 A Drag Star Classic |
| | |
Engine and Transmission Specifications | |
| Cooling system | Air |
| Fuel control | SOHC |
| Bore x stroke | 95.0 x 75.0 mm (3.7 x 3.0 inches) |
| Compression | 8.3:1 |
| Torque | 85.00 |
| Power | 62.00 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 1063.00 ccm (64.86 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 1,645 mm (64.8 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Overall width | 945 mm (37.2 inches) |
| Overall length | 2,465 mm (97.0 inches) |
| Overall height | 1,095 mm (43.1 inches) |
| Seat height | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Dry weight | 272.0 kg (599.7 pounds) |
| | |
Yamaha XVS 1100 A Drag Star Classic dimensions and frame | |
| Rear brakes diameter | 282 mm (11.1 inches) |
| Rear brakes | Single disc |
| Front brakes diameter | 298 mm (11.7 inches) |
| Front brakes | Dual disc |
| Rear tyre dimensions | 170/85-15 M/C 77S |
| Front tyre dimensions | 130/90-16 67S |
| Rear suspension travel | 113 mm (4.4 inches) |
| Front suspension travel | 140 mm (5.5 inches) |
Speed and acceleration | |
| Power/weight ratio | 0.2279 HP/kg |
