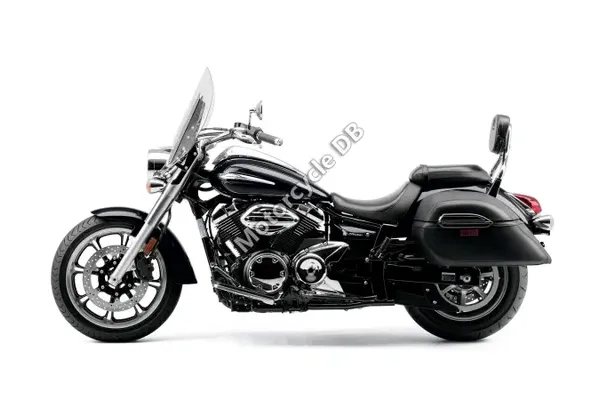

Yamaha V Star 950 - 2012 Specifications and Reviews
General information | |
| Category | Custom / cruiser |
| Year | 2012 |
| Model | Yamaha V Star 950 |
| | |
Engine and Transmission Specifications | |
| Emission details | 3-way catalyst technology |
| Greenhouse gases | 116.0 CO |
| Fuel consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Transmission type,final drive | Belt |
| Gearbox | 5-speed |
| Cooling system | Air |
| Fuel control | SOHC |
| Fuel system | Injection |
| Valves per cylinder | 4 |
| Bore x stroke | 85.0 x 83.0 mm (3.3 x 3.3 inches) |
| Compression | 9.0:1 |
| Engine details | 60° V twin. Forged aluminum pistons. |
| Engine type | V2, four-stroke |
| Capacity: | 942.31 ccm (57.50 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | 8-spoke cast |
| Rear brakes diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. Hydraulic |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Single disc. Hydraulic |
| Rear tyre dimensions | 170/70-16 |
| Front tyre dimensions | 130/70-18 |
| Rear suspension | Single shock, 4.3-in travel |
| Front suspension | Telescopic fork, 5.3-in travel |
| Trail | 102 mm (4.0 inches) |
| Rake (fork angle) | 32.0° |
| Frame type | Steel double-cradle |
Physical measures and capacities | |
| Fuel capacity | 17.03 litres (4.50 gallons) |
| Wheelbase | 1,684 mm (66.3 inches) |
| Overall width | 1,001 mm (39.4 inches) |
| Overall length | 2,436 mm (95.9 inches) |
| Overall height | 1,080 mm (42.5 inches) |
| Seat height | 676 mm (26.6 inches) If adjustable, lowest setting. |
| Weight incl. oil, gas, etc | 278.1 kg (613.0 pounds) |
Other specs | |
| Light | None |
| Ground clearance | 99 mm (3.9 inches) |
| Rear tyre | 18/9-8 |
| Front tyre | 18/7-8 |
| Rear wheel travel | 127 mm (5.0 inches) |
| Rear Suspension | Swingarm |
| Front wheel travel | 127 mm (5.0 inches) |
| Front Suspension | Independent double wishbone |
| Driveline | CVT |
| Clutch | Wet multiplate |
| Ignition | DC-CDI |
| Valves per cylinder | 2 |
| Bore x Stroke | 47.0 x 51.0 mm (1.9 x 2.0 inches) |
| Compression | 10.2:1 |
| Model | Yamaha Raptor 90 |
| Color options | Raven, Impact Blue |
| Factory warranty | 1 Year (Limited Factory Warranty) |
| Starter | Electric |
