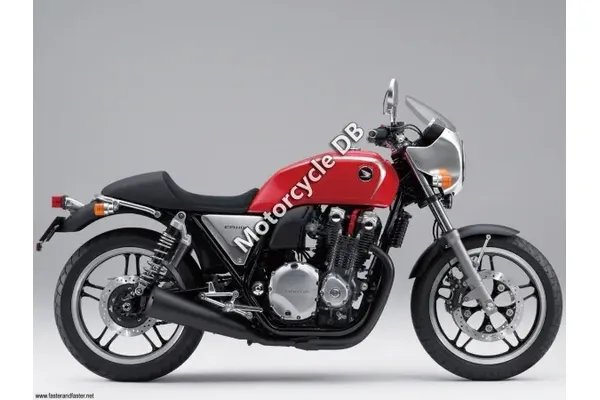

Honda CB1100 Type1 ABS - 2011 Specifications and Reviews

2011

General information
Category	Sport
Year	2011
Model	Honda CB1100 Type1 ABS
Engine and Transmission Specifications
Driveline	5-speed constant mesh
Clutch	Wet, multiplate with coil springs
Transmission type,final drive	Chain
Gearbox	5-speed
Cooling system	Air
Ignition	Full transistor type battery ignition
Fuel control	DOHC
Fuel system	Injection. PGM-FI electronic fuel injection
Valves per cylinder	4
Bore x stroke	73.5 x 67.2 mm (2.9 x 2.6 inches)
Torque	92.00 Nm (9.4 kgf-m or 67.9 ft.lbs) @ 5000
Power	87.17
Engine type	In-line four, four-stroke
Capacity:	1140.00 ccm (69.56 cubic inches)
Brakes, suspension, Frame and wheels
Rear brakes	Single disc. Anti-locking brakes
Front brakes	Double disc. Anti-locking brakes
Rear tyre dimensions	140/70-R18
Front tyre dimensions	110/80-R18
Rear suspension	Swing arm
Front suspension	Telescopic fork
Trail	114 mm (4.5 inches)
Rake (fork angle)	27.0°

Physical measures and capacities
Oil capacity	3.60 litres (0.24 quarts)
Fuel capacity	14.00 litres (3.70 gallons)
Wheelbase	1,490 mm (58.7 inches)
Ground clearance	125 mm (4.9 inches)
Overall length	2,205 mm (86.8 inches)
Overall height	1,130 mm (44.5 inches)
Seat height	765 mm (30.1 inches) If adjustable, lowest setting.
Power/weight ratio	0.3529 HP/kg
Dry weight	247.0 kg (544.5 pounds)

Other specs
Modifications compared to previous model	Also called USHighland 507 ATX QuadRacer.
Starter	Electric
Color options	Black/yellow
Wheelbase	1,245 mm (49.0 inches)
Overall width	1,016 mm (40.0 inches)
Rear Suspension	Elka
Front wheel travel	300 mm (11.8 inches)
Front Suspension	Elka
Frame type	Aluminium
Valves per cylinder	4
Capacity:	507.00 ccm (30.94 cubic inches)
Model	Highland 507cc ATX Quad Racer
