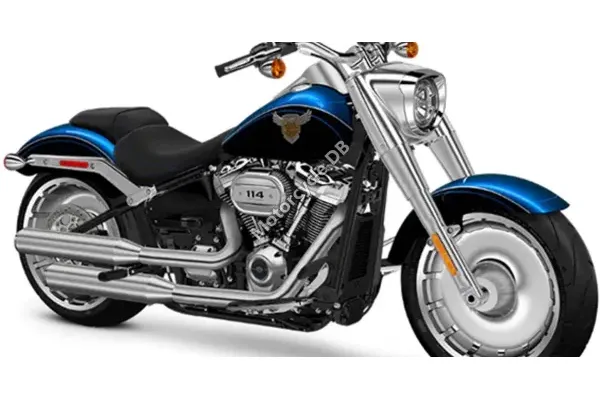

Harley-Davidson Softail Fat Boy - 2018 Specifications and Reviews

2019

2018

2017

2016

Add/Upload pictures for this motorcycle

General information
Category	Custom / cruiser
Year	2018
Model	Harley-Davidson Softail Fat Boy
Engine and Transmission Specifications
Exhaust system	2-into-2 staggered; catalyst in header
Greenhouse gases	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Fuel consumption	5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Driveline	Primary chain, 34/46 ratio
Clutch	Multi-plate with diaphragm spring in oil bath
Transmission type,final drive	Belt
Gearbox	6-speed
Cooling system	Air
Fuel control	Double Overhead Cams/Twin Cam (DOHC)
Fuel system	Injection. Electronic Sequential Port Fuel Injection
Bore x Stroke	100.0 x 111.1 mm (3.9 x 4.4 inches)
Compression	10.0:1
Torque	145.00 Nm (14.8 kgf-m or 107.0 ft.lbs) @ 3000 Revolutions">RPM
Power	86.00 Horsepower">HP (62.8 Kilowatt">kW)) @ 5020 Revolutions">RPM
Engine details	Milwaukee-Eight® 107, optionally 114 Big Twin
Engine type	V2, four-stroke

Brakes, suspension, Frame and wheels
Wheels	Machined, Lakester cast aluminum
Rear brakes	Single disc. ABS. 2-piston.
Front brakes	Double disc. ABS. 4-piston.
Rear tyre	240/40-R18
Front tyre	160/60-R18
Rear Suspension	Twin shocks
Front Suspension	Telescopic fork
Trail	104 mm (4.1 inches)
Rake (fork angle)	30.0°

Physical measures and capacities
Oil capacity	4.70 litres (0.31 quarts)
Fuel capacity	18.93 litres (5.00 gallons)
Wheelbase	1,665 mm (65.6 inches)
Ground clearance	115 mm (4.5 inches)
Overall length	2,370 mm (93.3 inches)
Seat height	675 mm (26.6 inches) If adjustable, lowest setting.
Power/weight ratio	0.2829 HP/kg
Weight incl. oil, gas, etc	317.0 kg (698.9 pounds)
Dry weight	304.0 kg (670.2 pounds)
Other specs
Light	High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings
Instruments	Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Starter	Electric
Color options	Vivid Black, Black Tempest, Industrial Gray, Bonneville Salt Pearl, Wicked Red/Twisted Cherry, Legend Blue/Vivid Black, Legend Blue Denim

Rider Reviews

Total comments: 1

MotorcycleDB Review

The 2018 Harley-Davidson Softail Fat Boy motorcycle is a true icon in the world of cruisers. With its unmistakable design and powerful performance, this bike is a dream come true for motorcycle enthusiasts. The 2018 model features a Milwaukee-Eight 107 V-Twin engine, delivering exceptional power and torque for an exhilarating ride. The Softail Fat Boy also boasts modern technology and comfortable ergonomics, making it a pleasure to ride for long distances. Whether you're cruising through the city streets or hitting the open road, the 2018 Harley-Davidson Softail Fat Boy delivers an unforgettable riding experience. In conclusion, the 2018 Harley-Davidson Softail Fat Boy is a standout choice for riders looking for a powerful and stylish cruiser. With its iconic design, impressive performance, and comfortable ride, this motorcycle is a top contender in its class. If you're in the market for a premium cruiser that turns heads and delivers an exhilarating ride, the 2018 Softail Fat Boy is definitely worth considering.
