General information | |
| Category | Naked bike |
| Year | 2015 |

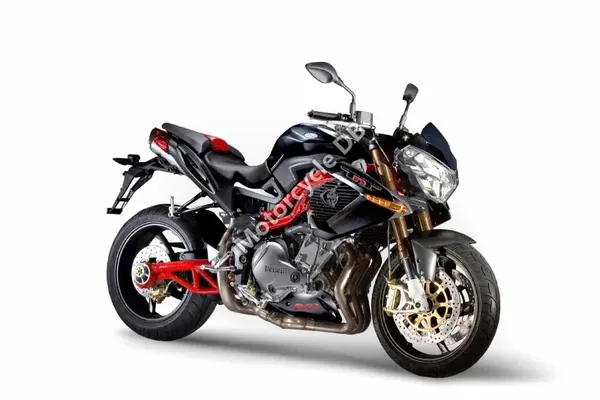

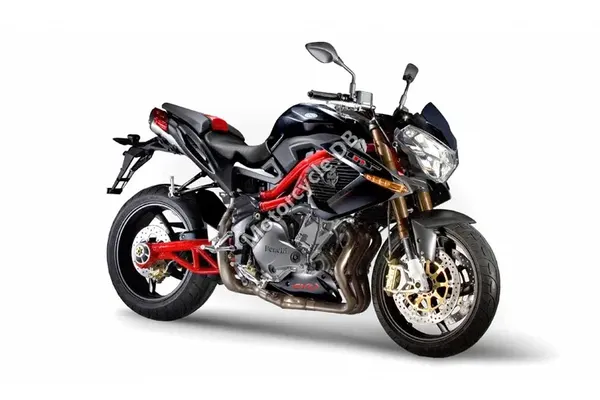

| Model | Benelli TNT R |
| | |
Engine and Transmission Specifications | |
| Exhaust system | With catalytic converter and oxigen sensor |
| Emission details | Euro 3 |
| Driveline | 44/79 primary drive |
| Clutch | Dry clutch with hydraulic command with slipper device |
| Transmission type,final drive | Chain |
| Gearbox | 6-speed |
| Cooling system | Liquid |
| Lubrication system | Wet sump |
| Ignition | Walbro ECUA-1 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Fuel system | Injection. Three throttle bodies ø53 mm |
| Valves per cylinder | 4 |
| Bore x Stroke | 88.0 x 62.0 mm (3.5 x 2.4 inches) |
| Compression | 12.5:1 |
| Torque | 120.00 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 8400 Revolutions">RPM |
| Power | 157.80 Horsepower">HP (115.2 Kilowatt">kW)) @ 10200 Revolutions">RPM |
| Engine details | Balancer shaft |
| Engine type | In-line three, four-stroke |
| Capacity: | 1131.00 ccm (69.01 cubic inches) |
| | |
Brakes, suspension, Frame and wheels | |
| Wheels | Aluminium alloy |
| Rear brakes diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc. Wave disk with double piston caliper |
| Front brakes diameter | 320 mm (12.6 inches) |
| Front brakes | Double disc. Floating Wave disk mm with radial monoblock 4 pistons calipers |
| Rear tyre | 180/55-ZR17 |
| Front tyre | 120/70-ZR17 |
| Rear wheel travel | 120 mm (4.7 inches) |
| Rear Suspension | Steel tube trestle swingarm, rear dumper with hydraulic adjustment (rebound, high and low speed compression) and spring preload assembled with progressive link |
| Front wheel travel | 120 mm (4.7 inches) |
| Front Suspension | 50 mm upside-down fork, with hydraulic rebound / compression and spring preload adjustments |
| Trail | 95 mm (3.7 inches) |
| Rake (fork angle) | 25.0° |
| Frame type | Decomposable, front steel trestle, rear aluminium alloy casting |
Physical measures and capacities | |
| Oil capacity | 4.00 litres (0.26 quarts) |
| Reserve fuel capacity | 4.00 litres (1.06 gallons) |
| Fuel capacity | 16.00 litres (4.23 gallons) |
| Wheelbase | 1,443 mm (56.8 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Overall length | 2,100 mm (82.7 inches) |
| Overall height | 1,050 mm (41.3 inches) |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Power/weight ratio | 0.7698 HP/kg |
| Weight incl. oil, gas, etc | 215.0 kg (474.0 pounds) |
| Dry weight | 205.0 kg (451.9 pounds) |
Other specs | |
| Comments | Italian brand. |
| Starter | Electric |
| Color options | White/red, red/titanium |
