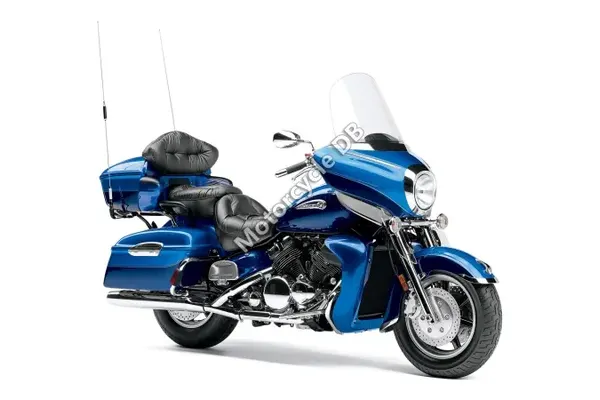

Yamaha Royal Star Tour Deluxe - 2012 Specifications and Reviews

Not Rated stars Average rating: Not Rated from 0 votes
.

General information

Category:Touring
Year:2012
Model:Yamaha Royal Star Tour Deluxe

Engine and Transmission Specifications

Greenhouse gases:129.9 CO
Fuel consumption:5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Clutch:Hydraulic
Transmission type,final drive:Shaft drive (cardan)
Gearbox:5-speed
Cooling system:Liquid
Ignition:Transistor Controlled Ignition
Fuel control:DOHC
Fuel system:Carburettor. (4) 32mm Mikuni CV
Valves per cylinder:4
Bore x stroke:79.0 x 66.0 mm (3.1 x 2.6 inches)
Compression:10.0:1
Power:97.00
Engine details:70° V-four
Engine type:V4, four-stroke
Capacity:1294.66 ccm (79.00 cubic inches)


Brakes, suspension, Frame and wheels

Wheels:7-spoke cast
Rear brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc
Front brakes diameter:298 mm (11.7 inches)
Front brakes:Double disc
Rear tyre dimensions:150/90-15
Front tyre dimensions:150/80-16
Rear suspension travel:104 mm (4.1 inches)
Rear suspension:Single shock
Front suspension travel:140 mm (5.5 inches)
Front suspension:Telescopic fork
Rake (fork angle):29.0°


Physical measures and capacities

Fuel capacity:20.06 litres (5.30 gallons)
Wheelbase:1,715 mm (67.5 inches)
Ground clearance:150 mm (5.9 inches)
Overall width:1,011 mm (39.8 inches)
Overall length:2,504 mm (98.6 inches)
Overall height:1,524 mm (60.0 inches)
Seat height:739 mm (29.1 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc:382.8 kg (844.0 pounds)

Other specs

Light:None
Rear tyre:18/9-8
Front tyre:18/7-8
Rear wheel travel:127 mm (5.0 inches)
Rear Suspension:Swingarm
Front wheel travel:127 mm (5.0 inches)
Front Suspension:Independent double wishbone
Driveline:CVT
Valves per cylinder:2
Bore x Stroke:47.0 x 51.0 mm (1.9 x 2.0 inches)
Compression:10.2:1
Model:Yamaha Raptor 90
Color options:Seashell/Raven, Candy Red/Raven
Factory warranty:5 Year Limited Factory Warranty
Instruments:Digital speedometer, odometer, dual tripmeters, fuel tripmeter, clock, fuel gauge and indicator lights for cruise control, overdrive, neutral, high beam, turn signals, water temperature and low oil-level.
Starter:Electric
