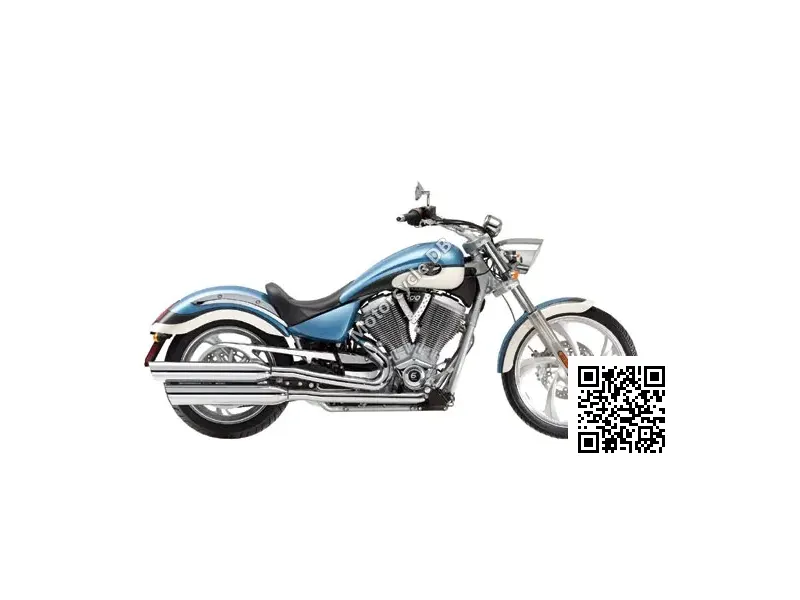

Victory Vegas - 2009 Specifications and Reviews
General information | |
| Category | Custom / cruiser |
| Year | 2009 |
| Model | Victory Vegas |
| | |
Engine and Transmission Specifications | |
| Clutch | Wet, multi-plate |
| Transmission typefinal drive | Belt |
| Gearbox | 6-speed |
| Cooling system | Air |
| Starter | Electric |
| Fuel control | SOHC |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic with 45mm throttle bodies |
| Bore x stroke | 101.0 x 102.0 mm (4.0 x 4.0 inches) |
| Compression | 8.7:1 |
| Stroke | 4 |
| Engine type | V2 |
| Capacity: | 1638.81 ccm (100.00 cubic inches) |
Physical measures and capacities | |
| Wheelbase | 1,684 mm (66.3 inches) |
| Ground clearance | 147 mm (5.8 inches) |
| Overall length | 2,438 mm (96.0 inches) |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Dry weight | 291.0 kg (641.5 pounds) |
Victory Vegas dimensions and frame | |
| Exhaust system | Staggered slash-cut dual exhaust with crossover |
| Rear brakes diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 2-piston caliper |
| Front brakes diameter | 300 mm (11.8 inches) |
| Front brakes | Single disc. 4-piston caliper |
| Rear tyre dimensions | 180/55-B18 |
| Front tyre dimensions | 90/90-21 |
| Rear suspension travel | 100 mm (3.9 inches) |
| Rear suspension | Single, mono-tube gas,cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring |
| Front suspension travel | 130 mm (5.1 inches) |
| Front suspension | Conventional telescopic fork, 43mm diameter, 5.1in/130mm travel |
| Trail | 126 mm (5.0 inches) |
| Rake (fork angle) | 32.9° |
| | |
Speed and acceleration | |
| Color options | Solid Black, Solid Blue Ice, Solid Pearl White, Solid Sunset Red. 2 tone Midnight Cherry/Pearl White w/ Carbon stripe, 2 tone Blue Ice/Pearl White w/Carbon stripe. |
| Fuel capacity | 17.03 litres (4.50 gallons) |
