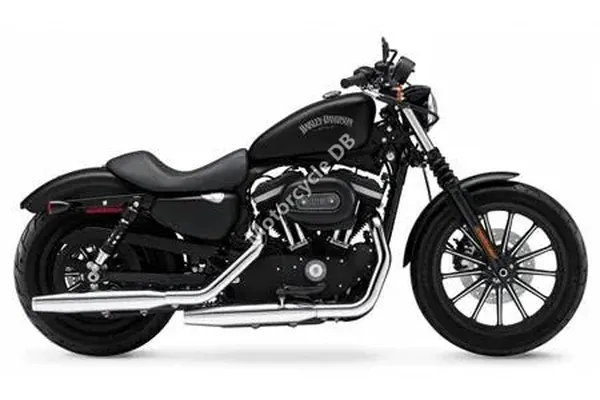

Harley-Davidson Sportster Iron 883 Dark Custom - 2013 Specifications and Reviews

Not Rated stars Average rating: Not Rated from 0 votes
.

General information

CategoryCustom / cruiser
Year2013
ModelHarley-Davidson Sportster Iron 883 Dark Custom

Engine and Transmission Specifications

Exhaust systemChrome, staggered shorty exhaust with dual mufflers
Greenhouse gases107.0 CO
Fuel consumption4.61 litres/100 km (21.7 km/l or 51.02 mpg)
DrivelineChain, 57/34 ratio primary drive
ClutchMulti-plate with diaphragm spring in oil bath
Transmission type,final driveBelt
Gearbox6-speed
Cooling systemAir
Fuel systemInjection. Electronic Sequential Port Fuel Injection
Bore x stroke76.2 x 96.8 mm (3.0 x 3.8 inches)
Compression8.9:1
Torque74.58 Nm (7.6 kgf-m or 55.0 ft.lbs) @ 3500
Engine detailsAir-cooled, Evolution®
Engine typeV2, four-stroke
Capacity:883.32 ccm (53.90 cubic inches)

Brakes, suspension, Frame and wheels

WheelsBlack, 13-Spoke Cast Aluminum
Rear brakesSingle disc
Front brakesSingle disc. Dual-piston
Rear tyre dimensions150/80-B16
Front tyre dimensions100/90-B19
Trail117 mm (4.6 inches)
Rake (fork angle)30.5°



Physical measures and capacities

Oil capacity2.60 litres (0.17 quarts)
Fuel capacity12.49 litres (3.30 gallons)
Wheelbase1,519 mm (59.8 inches)
Ground clearance99 mm (3.9 inches)
Overall length2,179 mm (85.8 inches)
Seat height653 mm (25.7 inches) If adjustable, lowest setting.
Weight incl. oil, gas, etc260.0 kg (573.2 pounds)
Dry weight251.0 kg (553.3 pounds)



Other specs

CommentsAmphibian.
StarterElectric
Wheelbase1,800 mm (70.9 inches)
Overall width1,600 mm (63.0 inches)
Overall height1,400 mm (55.1 inches)
Rear SuspensionIndependent coil springs and hydraulic dampers
Front SuspensionIndependent coil springs and hydraulic dampers
Fuel controlDouble Overhead Cams/Twin Cam (DOHC)
Valves per cylinder4
Top speed45.0 km/h (28.0 mph)
Capacity:1300.00 ccm (79.33 cubic inches)
ModelGibbs Quadski
Color optionsBlack Denim
LightHigh beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
InstrumentsHandlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
