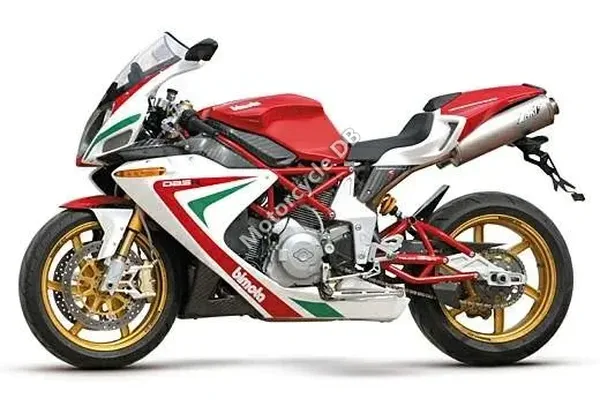

2008 Bimota DB5R

Add/Upload more pictures of this motorcycle


2008 Bimota DB5R specifications

General information
Model:Bimota DB5R
Engine and transmission
Displacement:1078.00 ccm (65.78 cubic inches)
Engine type:V2
Bore x stroke:98.0 x 71.5 mm (3.9 x 2.8 inches)
Fuel system:Injection. Electronic fule injection-45mm throttle body
Valves per cylinder:2
Fuel control:Desmodromic valve control
Lubrication system:Wet sump
Cooling system:Air
Clutch:Clutch type oil bath clutch Multi-disc Actuation system hydraulic
Physical measures and capacities
Dry weight:169.0 kg (372.6 pounds)
Seat height:810 mm (31.9 inches) If adjustable, lowest setting.
Overall length:2,180 mm (85.8 inches)
Overall width:750 mm (29.5 inches)
Ground clearance:130 mm (5.1 inches)
Wheelbase:1,425 mm (56.1 inches)
Bimota DB5R dimensions and frame
Front suspension:UD Fork Ohlins TiNFully adjustable Diameter = 43 m
Rear suspension:Ohlins Mono Shock, fully adjustable
Front tyre dimensions:120/70-17
Rear tyre dimensions:180/55-17
Front brakes:Single disc. Double 320 mm Brembo disc, 4-pistons, 4-pads ith radial Brembo calipers
Front brakes diameter:320 mm (12.6 inches)
Rear brakes:Single disc. 220 mm Brembo disc, 2-pistons, 2-pads with Brembo caliper
Rear brakes diameter:220 mm (8.7 inches)
Speed and acceleration
Power/weight ratio:0.5621 HP/kg
Other specs
Color options:Red/white/green
